Instruments

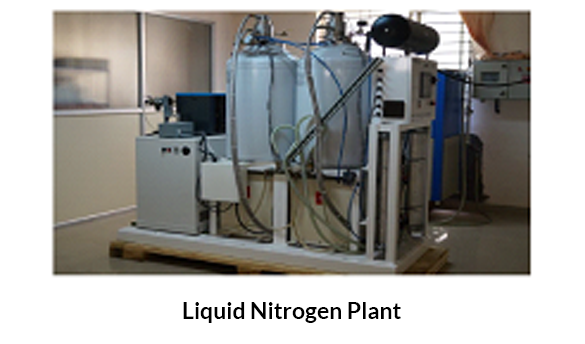

Liquid Nitrogen Generator [M280X2] from Kelvin InternationalCorporation, USA.

A total 240 liter vacuum insulated Stainless Steel Dewar tanks stores the daily production of 80-100 liters with purity ranging from 99 to 99.996%. Integrated within the enclosure are an oil-free scroll air compressor and PSA LN2generator. Touch Screen (HMI) and PLC controls provide for reliable and safe operation. With the push of one button, LN2is delivered to the customer’s tank and as easy as decanting tap water.All of the systems are fully automated, turning on and off as demand and liquid levels dictate, just press the start button and leave the system to do the work. Typical uses are in food storage, cell cryopreservation and bio-storage facilities.

Specifications& Features: Storage Capacity:300 liters,Peak Production:115 liters per day, Standard Production: 100lpd at 60 Hz,Purity:>99.5% with 99.9%, peak, Dimensions:117Wx 198Dx 221Hcm,Empty Weight:985 kg, Environment: Indoor or Outdoor, Certifications:CE, ASME Sec, VIII.Controls:PLC and Touch Screen, Operation:One-button with Auto-Start, Controls:Fully Automatic, Reliability:Double Redundancy, Air Compressor:Dry Scroll Type.Waters Acquity
